Supported Audio/Video Hardware

Drastic supports a wide variety of audio and video hardware for products such as 2110Scope/HDRScope/4KScope/sdiScope, videoQC, FlowCaster, and Net-X-Code Server. The current product families Drastic software supports are: AJA, Bluefish444 and Blackmagic adapters for audio/video I/O, and AMD or NVIDIA for video processing. For a more detailed list of hardware and versions, please continue reading.





Recommended Hardware Environment

In general a faster, more powerful system will be necessary to run high throughput workflows. The main considerations will be the GPU and the processor. Here are some recommendations.

HD 1080p60 - A recent Intel, AMD or NVIDIA with at least 1G memory card is fine for the GPU - A recent Quad Core i5/i7/AMD processor with at least 8G of ram 4K/QHD - A gaming level NVIDIA or AMD (NVIDIA 1080 or better/AMD Vega 2 or better) - Minimum 8 cores [16 virtual] Intel/AMD, recommended 8~12 cores with at least 8G ram We recommend a powerful, capable system for any testing or implementation of Net-X-Code Server. The following systems have been qualified for various high throughput workflows, including 4 channel and 8 channel I/O: Dell R6525 Dell R6615 HPE ProLiant DL325



---

ST-2110 Support

NVIDIA Connect-X 6 (requires Rivermax license) videoQC, Net-X-Code, 2110Scope, FlowCaster 7.0.x



NVIDIA Bluefield-2 (requires Rivermax license) videoQC, Net-X-Code, 2110Scope, FlowCaster 7.0.x



AJA KONA IP videoQC, Net-X-Code, 2110Scope, FlowCaster 7.0.x



Matrox IP videoQC, Net-X-Code, 2110Scope, FlowCaster 7.0.x



---

SDI/HDMI Support

For the fullest range of features, a powerful, fast system will be required, along with a supported capture board. The AJA, Bluefish444, and Blackmagic boards are industry proven solutions for a wide range of ingest and output workflows. Check each board's specifications  with the manufacturer to confirm whether your workflow is supported. The manufacturer will also have good recommendations on the hardware environment required.

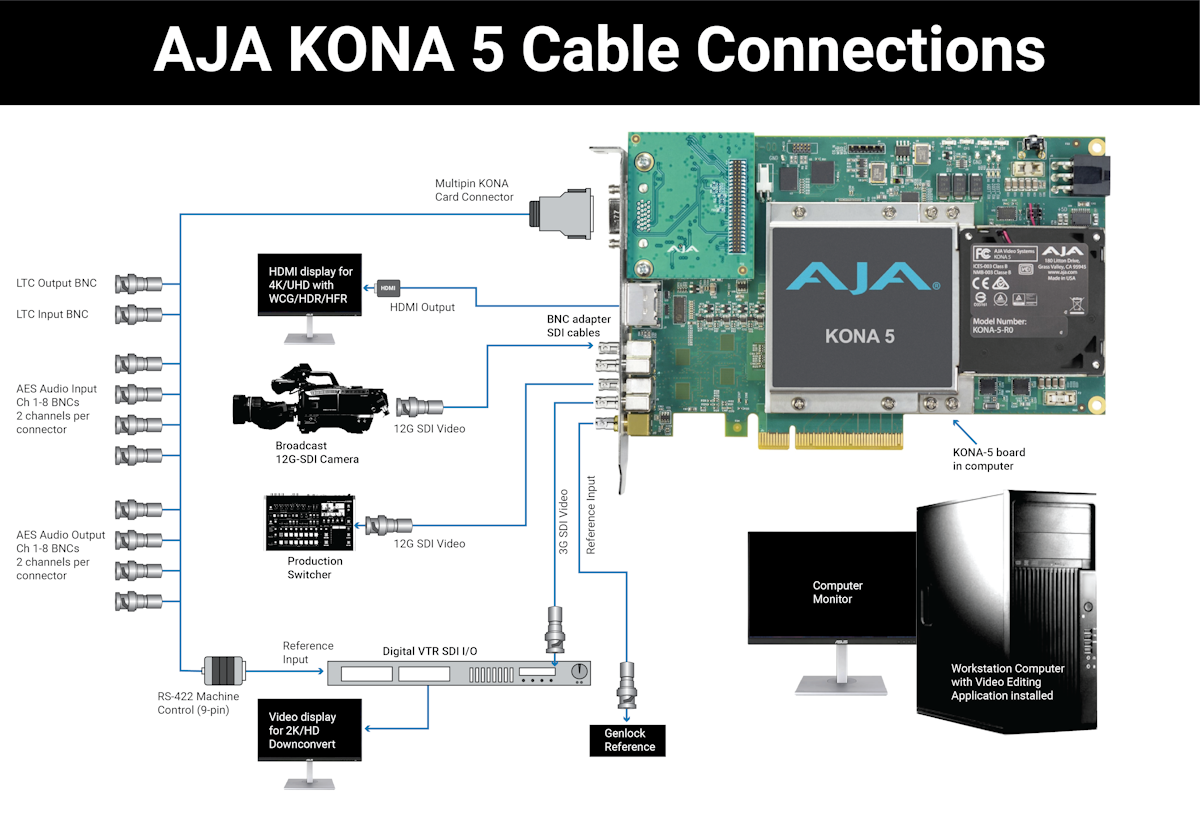

AJA KONA 5, KONA HDMI, KONA IP, KONA 4, KONA 3G, KONA 3, KONA LHi, KONA LHe Plus, LHe/LSe Io4K Plus, Io4K, Io XT, Io Express, T-Tap Corvid 3G, Corvid 22 / 24 / 44 / 88 videoQC, Net-X-Code, 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0.x Current release driver (16.2) (note: 17.x drivers are not currently compatible with our software)



Bluefish444 Lust (no AES/EBU), Horizon2K, Epoch, Supernova, Kronos videoQC, Net-X-Code, 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0.x Current release driver (6.3.3)



Blackmagic Design DeckLink series, Intensity series, MultiBridge series videoQC, Net-X-Code, 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0.x Blackmagic driver (14.2)



---

SDI/HDMI/USB/DVI/NDI Support

Some of our products also support a range of (typically lower cost) external devices for various workflows.

Digitnow HDMI USB Capture 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Elgato Game device capture 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Epiphan AV.io HDMI/SDI/4K 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Inogeni 4K, 3G, DVI, VGA/CVBS 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Logitech HDMI Screen Share 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Magewell HDMI and SDI USB-3 devices 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Microsoft USB Cameras 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Mokose HDMI/SDI USB-3 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Netwtek Local network NDI® device output and streams 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



Rybozen HDMI USB Capture 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



UVC Most (USB Video Class) compliant video devices 2110Scope/HDRScope/4KScope/sdiScope, FlowCaster 7.0x



---

Legacy Hardware

The information below applies to older versions of our hardware and software products, and is provided as a reference in the (unlikely) event a user still has one of these systems in operation. Generally this hardware is no longer manufactured though it may be available for resale. The Drastic products noted below are no longer available.

---

AJA

KONA HD, KONA SD, HD 22, SD 22, KONA2

QuickClip Version 3.4.17 and earlier - end of life

AJA Driver 6.6.0 or 5.2.1

---

Blackmagic

DeckLink series

OEM DDR Only.  Version 3.4.x, Version 3.9.x, Version 4.0.x

Blackmagic driver 9.2

---

Bluefish444

Deepblue I|O, Iridium | SD, Iridium | AV, Deepblue | LT, Wilblue|AV, SD|Pride, SD|Envy

QuickClip Version 3.4.17 and earlier - end of life

Bluefish444 driver version 4

---

DVS

HDStationOEM, SDStationOEM

QuickClip Version 2.9.0 and earlier - end of life

DVS Version 2.5p33 or 2.7p48

---

Matrox

Digisuite, Digisuite LE

QuickClip Version 2.0 and earlier - end of life

DigiTools 4.6.1158

---

Stradis

QuickClip Version 2.9.0 and earlier - end of life

Stradis Version 4

---

Vela

CineView Pro

QuickClip Version 2.9.0 and earlier - end of life

Vela Version 2.6.4

---

ViewGraphics

VideoPump

QuickClip Version 2.9.0 and earlier - end of life

VG Version 3.2.17 (2K), 3.1.4 (NT)

---
