Metadata Display in DrasticScope

metadata111Here is a comprehensive list of ancillary (ANC) metadata types supported in DrasticScope, grouped by purpose and annotated with the relevant standard (e.g., SMPTE, ITU-R, ARIB, etc.)

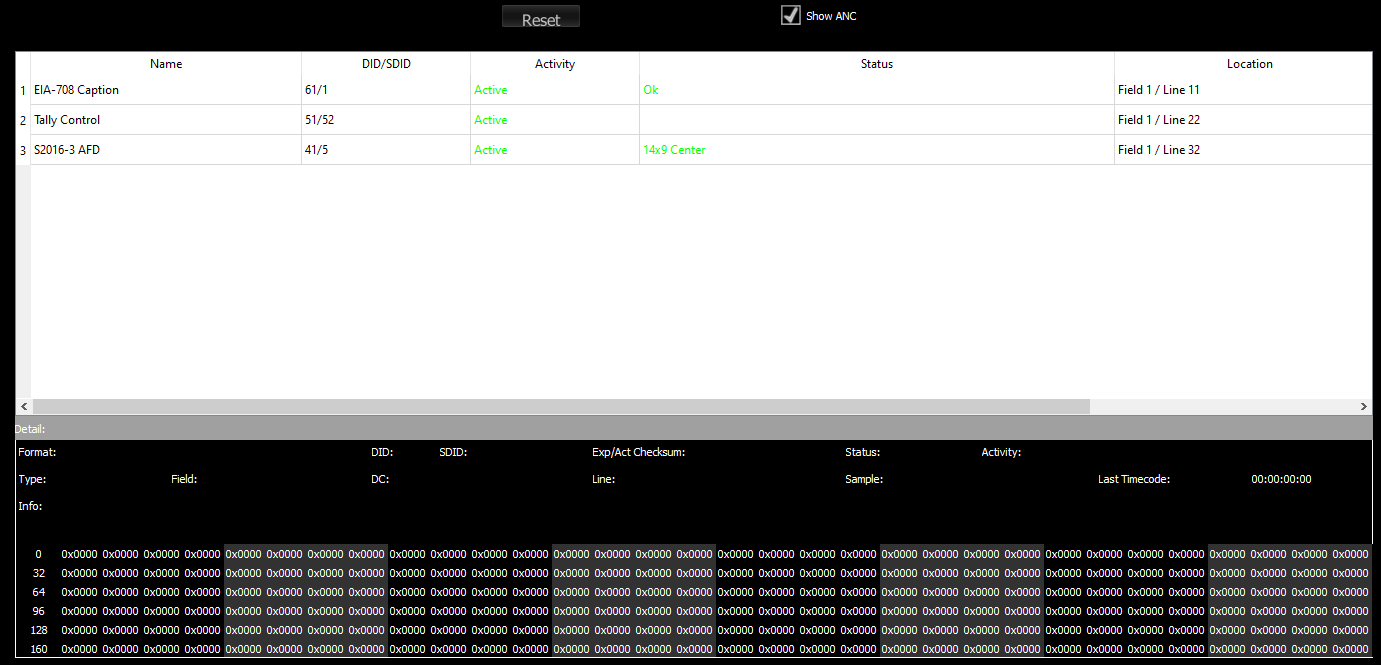

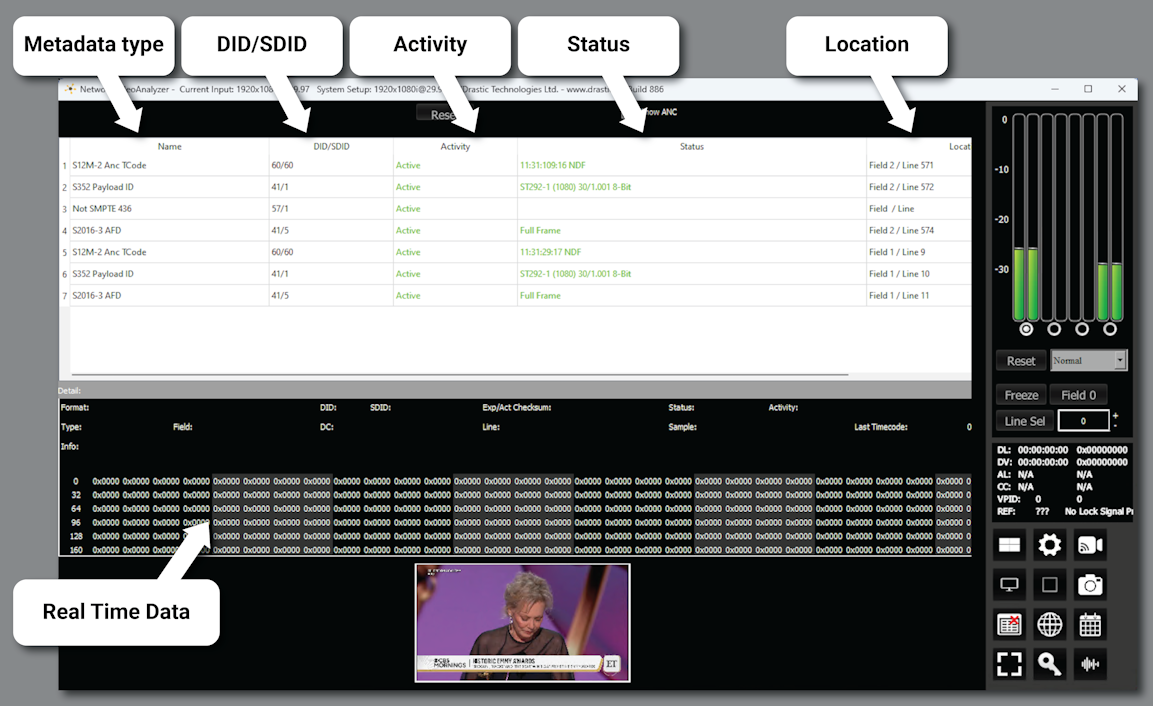

Drastic supports a wide range of ANC packet types commonly found in SDI-based broadcast systems, including both legacy and modern standards across audio, video, control, captions, and data applications. The Hex/Dec Data View provides a list of current metadata, and provides details about its status, location, and more. Selecting a data type will load its details into the real time display.

004 ScopeANCView

1. Timecode and Timestamp Metadata

SMPTE ST 12M / BT.1366: ANC timecode (including for high frame rate signals).
SMPTE ST 2109: Generic time label support. Format for Non-PCM Audio and Data in AES3 — Audio Metadata
SMPTE RP 196: LTC and VITC in HANC (deprecated). Transmission of LTC and VITC Data as HANC Packets in Serial Digital Television Interfaces
ARIB STD-B41: Time code for Japanese broadcasting. Transmission System for Digital Satellite Sound Broadcasting

2. Payload and Video Format Identification

SMPTE ST 352: Payload ID for identifying video payload structure in Serial Digital Interfaces.
BTA S-004C: Video Payload Identification for Digital Interfaces. Bit-serial Digital Interface for 1125/60 HDTV Systems
SMPTE RP 215: Film codes embedded in VANC (for Telecine information). Encoding Film Transfer Information into Vertical Ancillary Data for SMPTE 292M Bit-Serial Interface.

3. AFD, Bar, and Pan & Scan Data

SMPTE ST 2016-3: AFD (Active Format Descriptor) and Bar Data.
SMPTE ST 2016-4: Pan and scan information. Vertical Ancillary Data Mapping of Pan-Scan Information.

4. Audio Metadata

SMPTE ST 272M: SD Audio and associated control/data packets. Formatting AES Audio and Auxiliary Data into Digital Video Ancillary Data Space.
SMPTE ST 299M: HD/3G Audio and related control/data packets. 24-Bit Digital Audio Format for SMPTE 292 Bit-Serial Interface.
SMPTE ST 2020-1: Compressed audio metadata (Dolby, etc.). Format of Audio Metadata and Description of the Asynchronous Serial Bitstream Transport.

5. Closed Caption and Subtitle Metadata

SMPTE ST 334-1: EIA-608 and EIA-708 closed caption data. Vertical Ancillary Data Mapping of Caption Data and Other Related Data.
SMPTE RP 208: VBI data mapping. Transport of VBI Packet Data in Ancillary Data Packets.
SMPTE RDD 8 / OP-47: Subtitling distribution packets and VANC multi-packet transport. Storage and Distribution of Teletext Subtitles and VBI Data for High Definition Television.
ARIB STD-B37: Captions for analog, SD, HD, and mobile. Structure and Operation of Closed Caption Data Conveyed by Ancillary Data Packets.

6. HDR/WCG Metadata

SMPTE ST 2108-1: HDR/WCG metadata and extended signaling in the Vertical Ancillary Space.
SMPTE ST 2108: HDR/WCG camera settings. Defines the transport of High Dynamic Range (HDR) and Wide Color Gamut (WCG) metadata in ancillary data packets.

7. Lip Sync and Latency

SMPTE ST 2064-1: Lip Sync measurement data. Audio to Video Synchronization Measurement - Fingerprint Generation.

8. Control and Trigger Signals

SMPTE RP 165: Error detection and checkwords. Error Detection Checkwords and Status Flags for Use in Bit-Serial Digital Interfaces for Television..
ITU-R BT.1685: Inter-station control. Structure of Inter-Station Control Data Conveyed by Ancillary Data Packets.
ARIB STD-B39: Inter-studio control signal. Structure of Inter-Stationary Control Data Conveyed by Ancillary Data Packets.
ARIB STD-B35: Trigger signal packets for data broadcasting. Data Program Exchange Specification for Digital Broadcasting..
ROSS openGear: Various decoding status and control metadata.

9. Data Broadcast and Program Metadata

SMPTE RP 207: Program description in VANC.
SMPTE ST 334-1: Data broadcast in VANC. Vertical Ancillary Data Mapping of Caption Data and Other Related Data.
SMPTE ST 2031: DVB/SCTE VBI data. Carriage of DVB/SCTE VBI Data in VANC.
SMPTE ST 2010: Vertical Ancillary Mapping of ANSI/SCTE 104 messages.

10. Camera and Acquisition Metadata

SMPTE RDD 18: Camera acquisition parameters and camera metadata.
Blackmagic Camera Control Protocol: Embedded tally and control packets.

11. KLV and UMID Metadata

SMPTE RP 214: KLV Metadata in VANC and HANC. Packing KLV Encoded Metadata and Data Essence into SMPTE 291M Ancillary Data Packets.
SMPTE RP 223: UMID and Program ID label data. Packing UMID and Program Identification Label Data into SMPTE 291M Ancillary Data Packets.

12. Encryption and Link Security

SMPTE ST 427: Link encryption messages and metadata. Link Encryption for 1.5 Gb/s Serial Digital Interface.
CineLink-2: Metadata for encrypted link.
SMPTE-291: Control packets (start, stop, and deletion markers). Ancillary Data Packet and Space Formatting.

13. Stereoscopic and 3D Signaling

SMPTE ST 2108-1: 3D frame-compatible packing and signaling. HDR/WCG metadata packing and signaling in the Vertical Ancillary Space.

14. SDTI and MPEG Recording

SMPTE ST 348M / ITU-R BT.1557: HD SDTI header. High Data Rate Serial Data Transport Interface (HD-SDTI).
SMPTE RP 305: SDTI header data.
SMPTE ST 353: MPEG recoding metadata. Transport of MPEG-2 Recoding Information as Ancillary Data Packets.
SMPTE ST 2056: MPEG TS packet embedding in ANC.

15. Color Information and Visual QC

ARIB TR-B18: Color frame information (525/60). Color Frame Information for Component Interface of 525/60 and 1125/60 Television Systems.
AJA QA: Field test packets (F1/F2).

16. Miscellaneous

SMPTE RP 223: Program ID and UMID. Defines means of packing unique material identification (UMID) label data or other program identification label data into SMPTE 291M ancillary data packets for transport.
SMPTE ST 2051: Two-frame marker metadata. Two-Frame Marker for 50-Hz and 60(/1.001)-Hz Progressive Digital Video Signals on 1.5 Gb/s and 3 Gb/s Interfaces.
Custom UINT64_T counter: For internal frame tracking.
ARIB TR-B23: Various user data and dummy packets for inter-station exchange. Operational Guidelines for Ancillary Data in Inter-Stationary Information Exchange.
