Rivermax and Drastic Software

2110Scope, Net-X-Code, videoQC, and FlowCaster software support Rivermax for software based SMPTE 2110/2022 input and/or output with NVIDIA Rivermax®, ConnectX-6 and BlueField network adapters. This article outlines the appropriate driver, firmware and software setup. It also includes links to articles on optimizing your system to best make use of Rivermax as a virtual I/O system.

NVIDIA Rivermax Hardware

The NVIDIA Rivermax® + ConnectX-5/6/BlueField2 adapter card combination fully enables compliance with M&E specifications, such as the SMPTE 2110-22; reduces CPU utilization for video data streaming; and removes bottlenecks for the highest throughput. It can reach 82 Gbps of streamed video with a single CPU core.

Rivermax-accelerated applications stream not only video, audio, and ancillary data but other data stream formats as well, enabling the Rivermax accelerations and CPU savings required for high bandwidth applications such as broadcast and production quality video streaming.

How to Install
Software Support

How to Install

Installing Rivermax

Once the ConnectX-6 or BlueField network card is installed in the system, you will need to load the correct drivers, firmware, and license Rivermax.

Driver

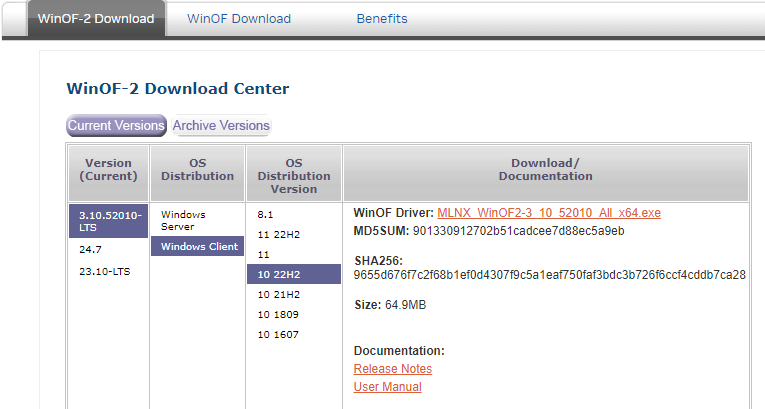

Install the Mellanox/NVIDIA driver (current Rivermax is 1.9 so WinOF2 2.80.xxx)
- https://www.mellanox.com/products/adapter-software/ethernet/windows/winof-2
- Select "WinOF-2 Download", "Archive Versions" and "2.80" for your OS

To install for Rivermax, you must specify it on the command line:

MLNX_WinOF2-2_80_50000_All_x64.exe /v"MT_RIVERMAX=1 /l*vx log.txt

Firmware

Get the correct firmware and burning tools

Hardware Settings

There are two important settings for the ConnectX/BlueField hardware:

Loopback - Disable Unicast and Multicast

trialrequest enterthedetails

and Flow Control - Disabled

lic sdi 003

BlueField Setup

Follow the instructions in

DPU_Deployment_Guide_1_09.pdf

to set up the DPU's PTP reader for hardware PTP handling. Please feel free to This email address is being protected from spambots. You need JavaScript enabled to view it. if you need more information.

License

To use Rivermax, you will need to request a license from an authorized NVIDIA reseller. The licenses are each specific to a certain type of board, so you will need to confirm the appropriate solution for your workflow. To find an NVIDIA reseller in your area, you can check out their Partner Portal.

Install the Rivermax license here: C:\Program Files\Mellanox\Rivermax\lib\rivermax.lic

NVIDIA Rivermax Solutions for Drastic Software

Some Drastic software uses NVIDIA Rivermax to send and receive ST-2110. Please see the Software tab of this page for more information.

Software Support

Drastic Software that uses NVIDIA Rivermax®

FlowCaster

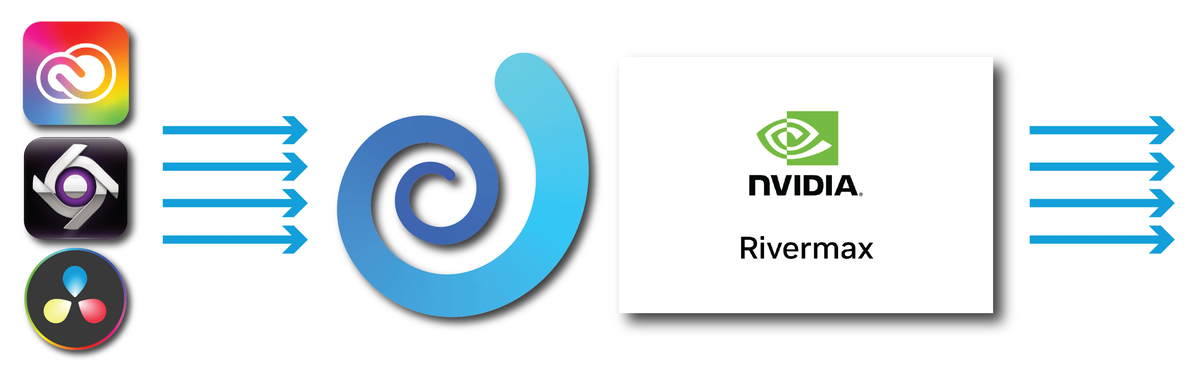

FlowCaster provides a virtual hardware board that allows creative software, like Adobe/Avid/DaVinci, to output directly to 2110 via NVIDIA Rivermax®

lic nxs 001

Run the FlowCaster application and select Rivermax 2110 to use it to send, or NIC IP Video to use it as a board. The flows can then be set up by NMOS or manually with ipVideoConfig

Net-X-Code Server

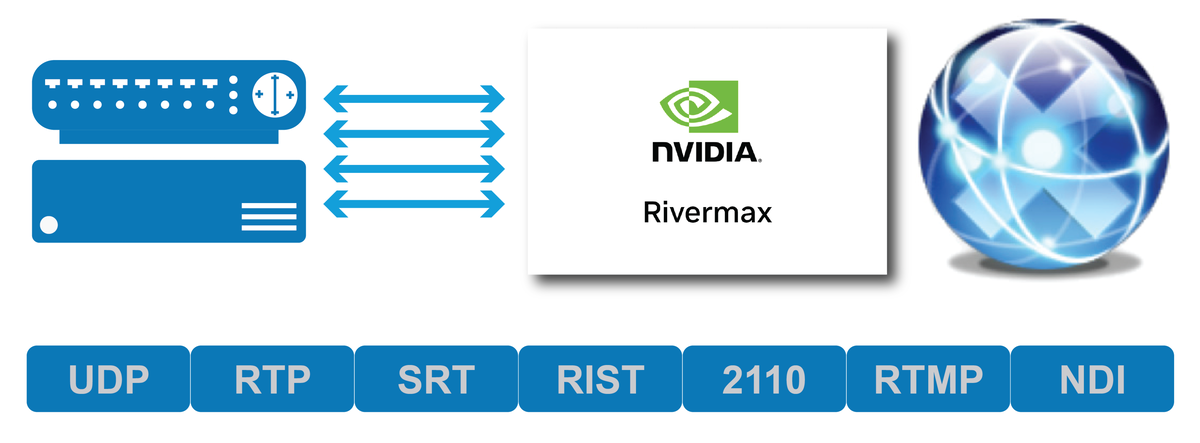

Net-X-Code Server provides a server system that uses NVIDIA Rivermax® to capture and convert to/from other protocols and files. It provides multichannel capture and playback to/from MXF/MOV/AVI/DPX/etc. with NVIDIA Rivermax® 2110, as well as direct conversion between 2110 and RTP/UDP/SRT/RIST/RTMP/HLS/etc.

lic nxs 002

In Net-X-Code Server, Rivermax shows up as a 'video board' called NIC IP Video.

2110Scope

2110Scope provides a software Waveform/Vectorscope for audio/video/anc that uses NVIDIA Rivermax® and an NVIDIA® GPU for real time monitoring and analysis of the 2110 signal.

lic nxs 003

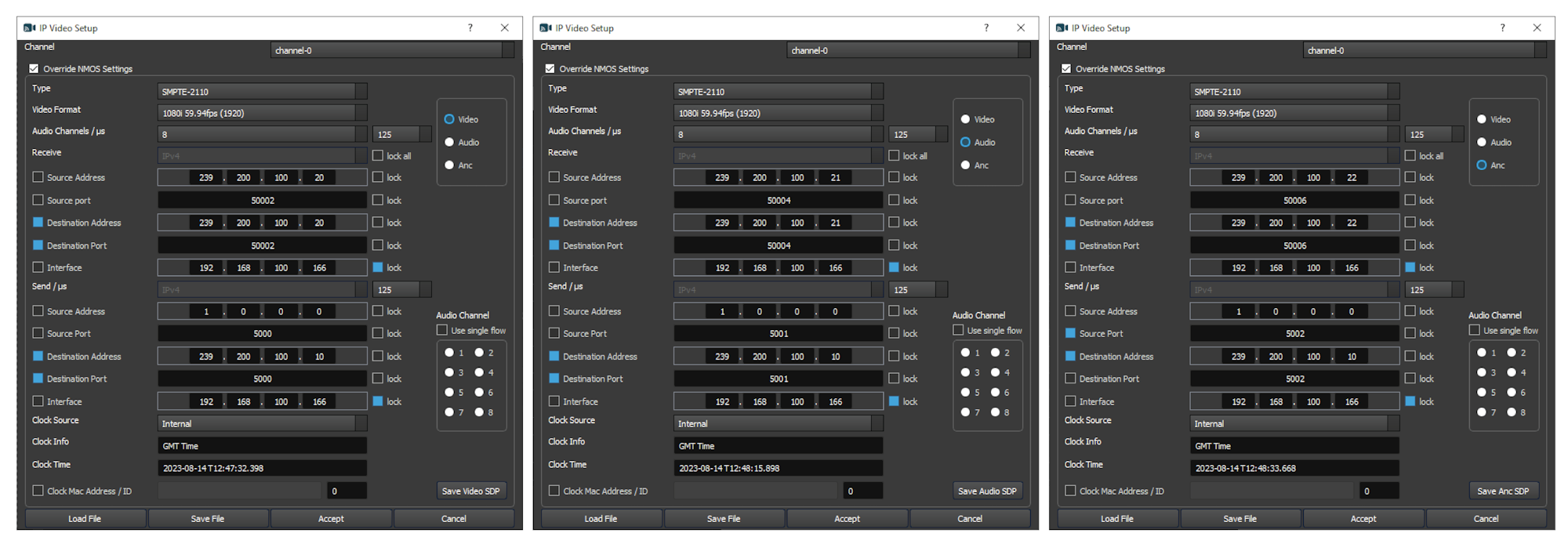

In 2110Scope, you will select NIC IP Video and it can then be set up by NMOS or manually in the IP Video Config dialog.

videoQC

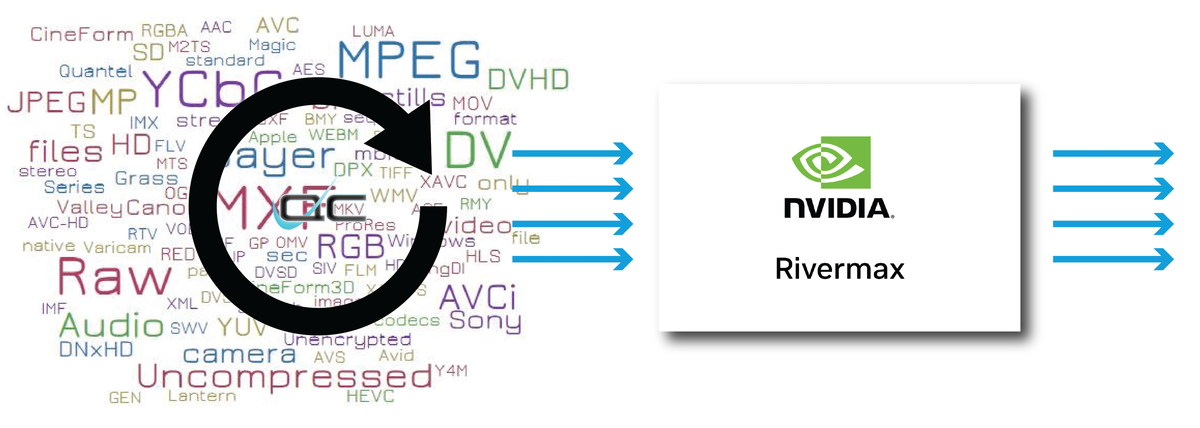

videoQC provides a software file player for broadcast/post production files, including camera raw and image sequences, that can play out to 2110 using NVIDIA Rivermax®

vqc rivermax

In videoQC, you will select NIC IP Video and it can then be set up by NMOS or manually in the IP Video Config dialog.
