4KScope (and HDRScope/2110Scope) can be set up to share an AJA board with products like Adobe Premiere, Avid Media Composer, Assimilate SCRATCH, Autodesk Flame, Filmworkz Nucoda, Grass Valley Edius, and others. This mode is available on Windows, macOS and Linux. This article explains how it works and how it can be set up.
AJA Shared Mode
What it is

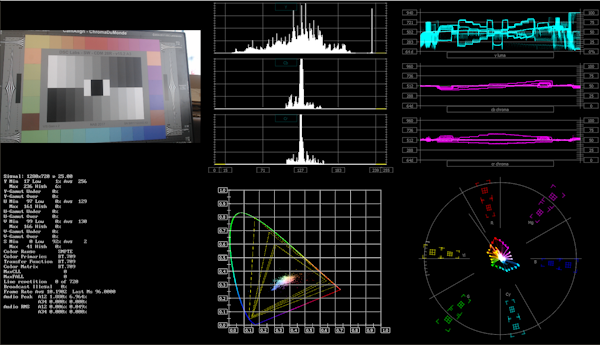

The AJA shared mode is a special mode that allows another application to run the board, and while that application is running, 4KScope looks at the video it is sending, and generates scopes based on that. This eliminates the need for more than one video card, cabling, and an extra computer.
How To Set It Up
For occasional use in this mode, first run the creative application (Avid/Adobe etc.), then run 4KScope. While 4KScope is starting up, switch back to the original application. 4KScope will see that the AJA board is in use, and will automatically run in shared mode.

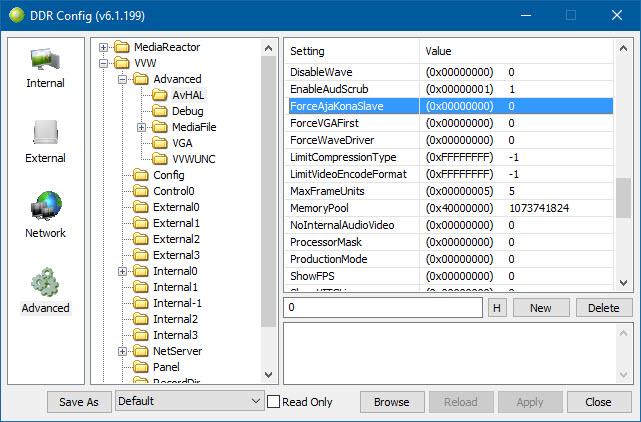

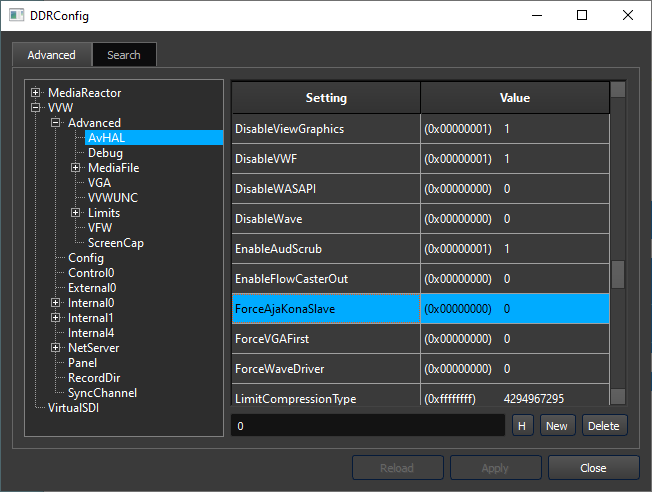

If 4KScope is always going to be used in shared mode, there is a configuration variable that can be set to make it only come up in that mode. This makes sure 4KScope never takes over the board to use its input as a waveform/vectorscope. To set this up, run DDRConfig, select the Advanced tab and change:
/VVW/Advanced/AvhAL/ForceAjaKonaSlave = 1
To put it back to normal mode, set it to 0. These configuration settings should be done while all Drastic software is closed.
