FlowCaster VirtualCam for Microsoft Teams

webex

Is your company already using Microsoft Teams for remote conferencing? Do you need to share high quality video in real time with your stakeholders? FlowCaster has added a VirtualCam setting that lets it show up as a webcam in meeting sites like Microsoft Teams. Here are details on how to set this up.

This article assumes you are already familiar with Microsoft Teams, and have set up an account.

This article also assumes you have installed and licensed FlowCaster software. For testing purposes, we are happy to provide temp licenses on request.

Run Adobe Premiere Pro, Media Composer, DaVinci Resolve, etc.

This example uses Adobe Premiere. Open a project with some clips in a timeline.

fc run premiere

Set Edit | Playback | Preferences to use FlowCaster Transmitter for the audio device, and for the video device.

fc setup adobe

Press the Setup button to the right of the FlowCaster Transmitter checkbox. This opens the FlowCaster configuration window. On the Config tab set the Transmit Type to FC VirtualCam.

fc configadobe

Once you have FlowCaster set up, and your editor ready to go, you can start a meeting.

Go To Microsoft Teams

Sign in to your account.

Open a meeting.

Microsoft Teams will prompt you to give it permission to use your camera and microphone. Feel free to check the Remember This Decision checkbox if you don’t want to perform this step each time.

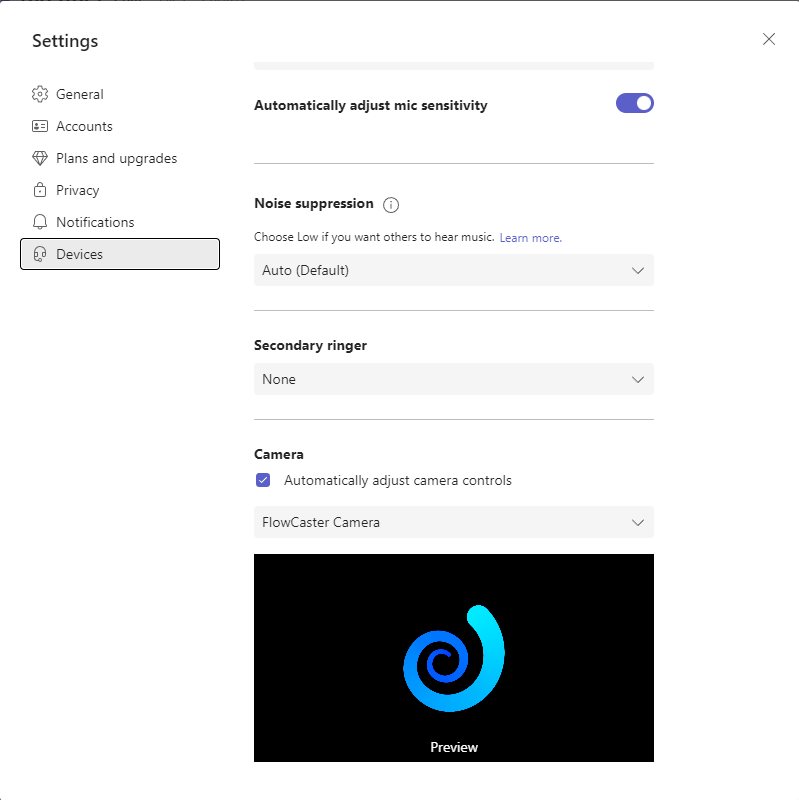

To use the FlowCaster VirtualCam, in Settings | Devices | Camera, select FlowCaster Camera.

fc select camera

Once the people you have invited arrive, they too will be able to see the output of the editor as part of the meeting.

You can also use the FlowCaster VirtualCam to send other sources to a Microsoft Teams meeting.

Use FlowCaster to Send Other Sources

In addition to creative software such as Adobe/Avid/Resolve etc., FlowCaster can also send other sources to a Microsoft Teams meeting. The following inputs are supported:

NIC IP Video
AJA
AJA Shared Mode
Bluefish444
Blackmagic
UltraScope
Matrox
DirectShow/UVC
NDI In
Desktop
Adobe ScopeDirect
OpenFX ScopeDirect
Assimilate ScopeDirect

Send the Output of an AJA Board

The below example shows how to send the output of an AJA board to the meeting, using the FlowCaster VirtualCam feature.

Run FlowCaster.

On the Input tab use the board type pulldown menu to view available sources. In the below example, an AJA board is selected, and some of the other inputs are displayed.

fc other sources2

On the Config tab set the Transmit Type to FC VirtualCam, and check the This Application button to use a source other than your creative software.

fc config

You may need to press the Enable New Config button to enable the configuration changes in FlowCaster.

fc setnew config

On the Config tab you can also check the Burn in TC to send burned in time code along with the board’s output.

fc burnin tc

  Once you have set these parameters, you should be able to set up a meeting and send whatever source you have selected.
