MediaNXS - Digital Intermediate I/O

medianxs_logo_approvedMediaNXS offers a comprehensive range of capture, playback, import and export features for the digital intermediate workflow.  Integrate easily with industry standard automation and controllers, and control external VTRs for pull-ins and laybacks.  Use onscreen monitoring including signal analysis tools to complement your hardware I/O. Create the files you require from collaboration to delivery with our extensive broadcast and production file format support.


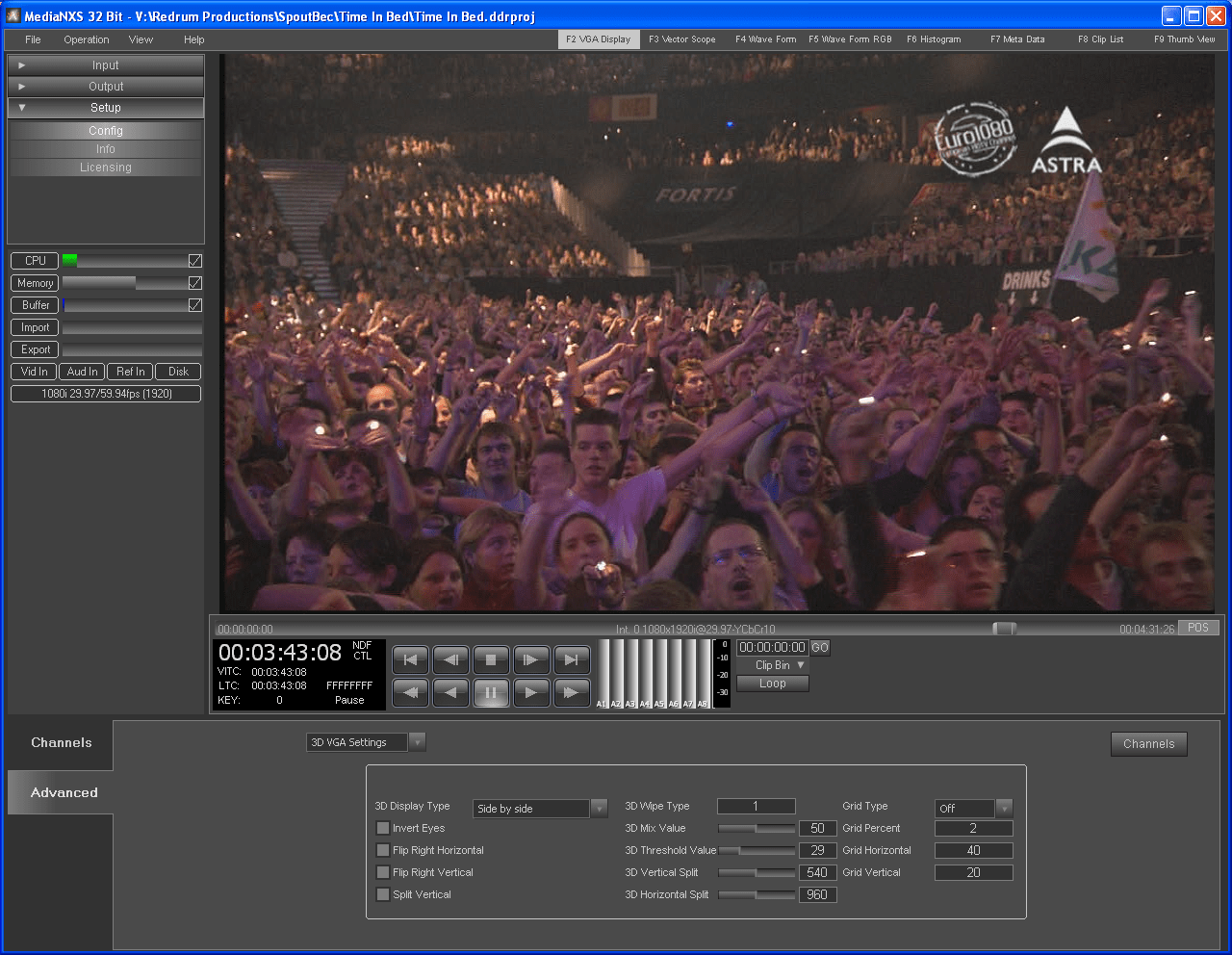

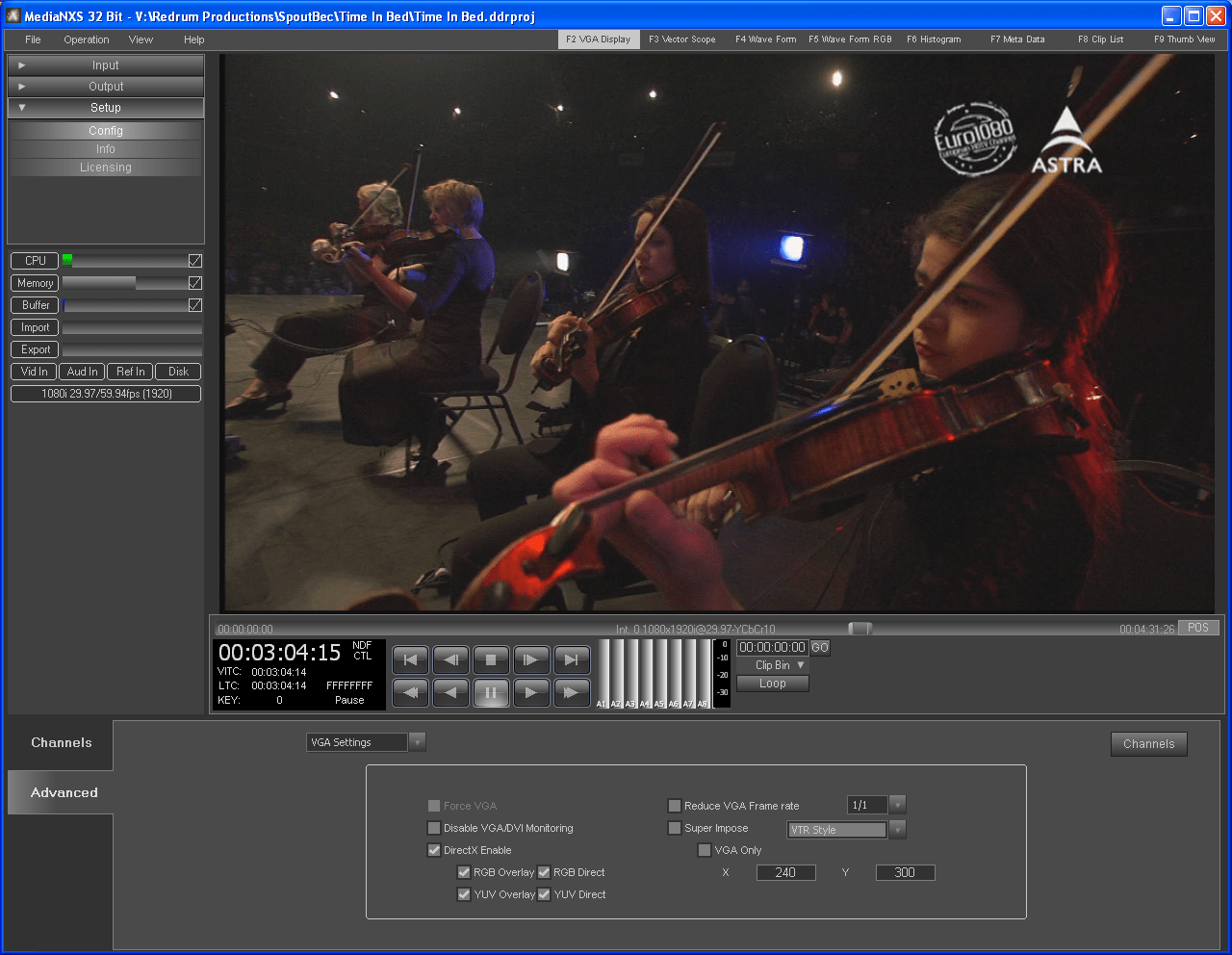

MediaNXS software provides a bridge between the digital intermediate workflow and the real world. User directed, time of day, or set duration record directly to your preferred file type. Import existing files for playback. Create low resolution proxy files via export for logging and editing, and generate full resolution conforms for downstream processing and delivery. Maintain project-based media pools and settings. Output via Drastic's robust VGA preview for passthrough and output video plus a range of signal analysis tools (vectorscope, waveform monitor, and histogram), with built in metadata display.


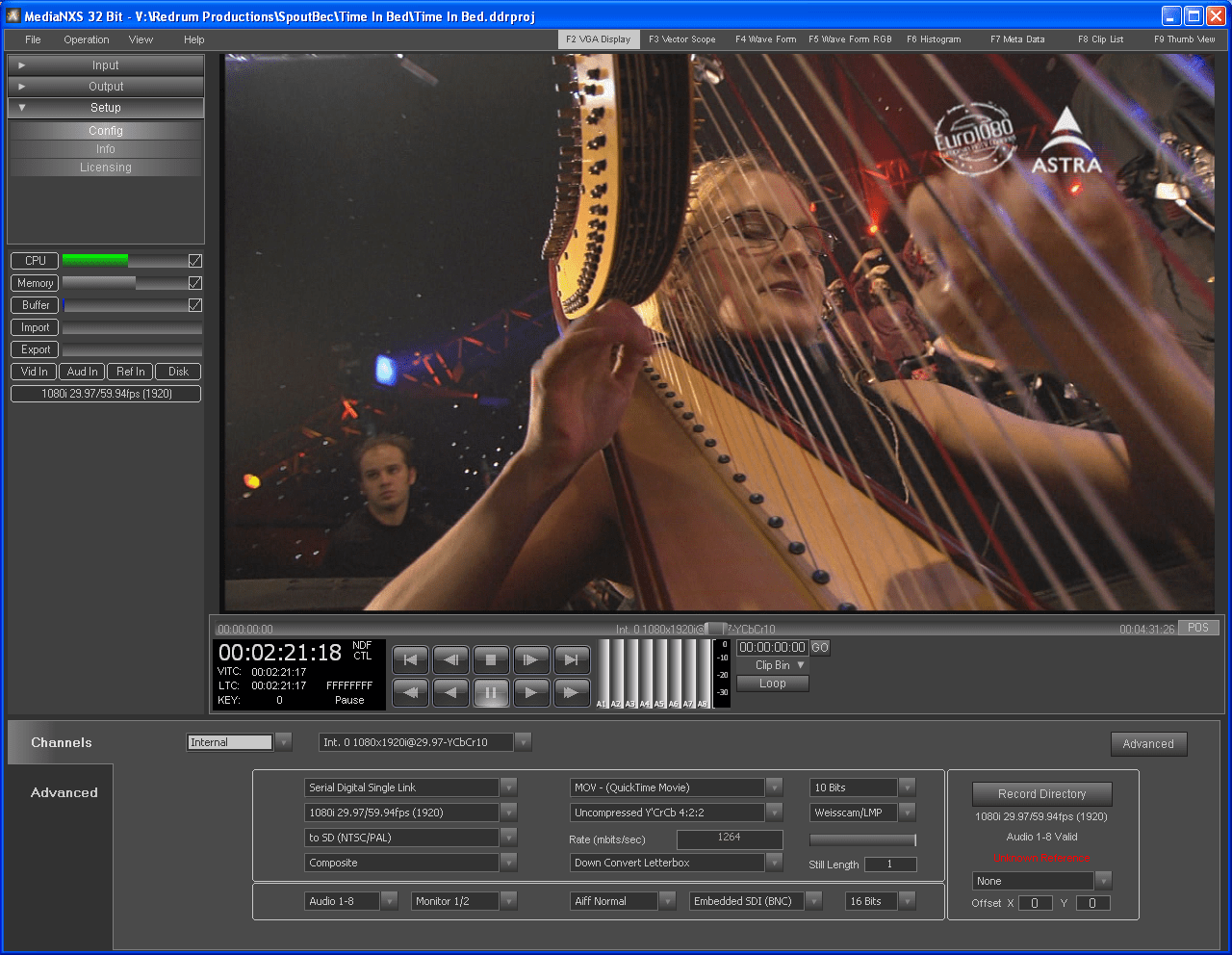

Frontpage Slideshow | Copyright © 2006-2012 JoomlaWorks Ltd.



90 Seconds with MediaNXS (download mp4)

Application Compatibility and Conversion

MediaNXS not only supports physical I/O, it also provides transcoding from and to formats used by your digital intermediate software. Direct support for the formats used in Smoke/Flame, Assimilate Scratch, Nuke, Final Cut Pro, Avid editors, Premiere Pro, Digital Fusion, After Effects, Shake, Motion, Combustion and many more. MediaNXS creates both compressed and uncompressed files that are supported directly by these applications. This means no extra steps in moving media between your editing, graphics, color grading and CGI tools and the real world, from creation to delivery.



...create files used by most popular content creation tools



Crash, Timed and Basic On Set Recording

MediaNXS provides a variety of recording methods and settings.

z03 record

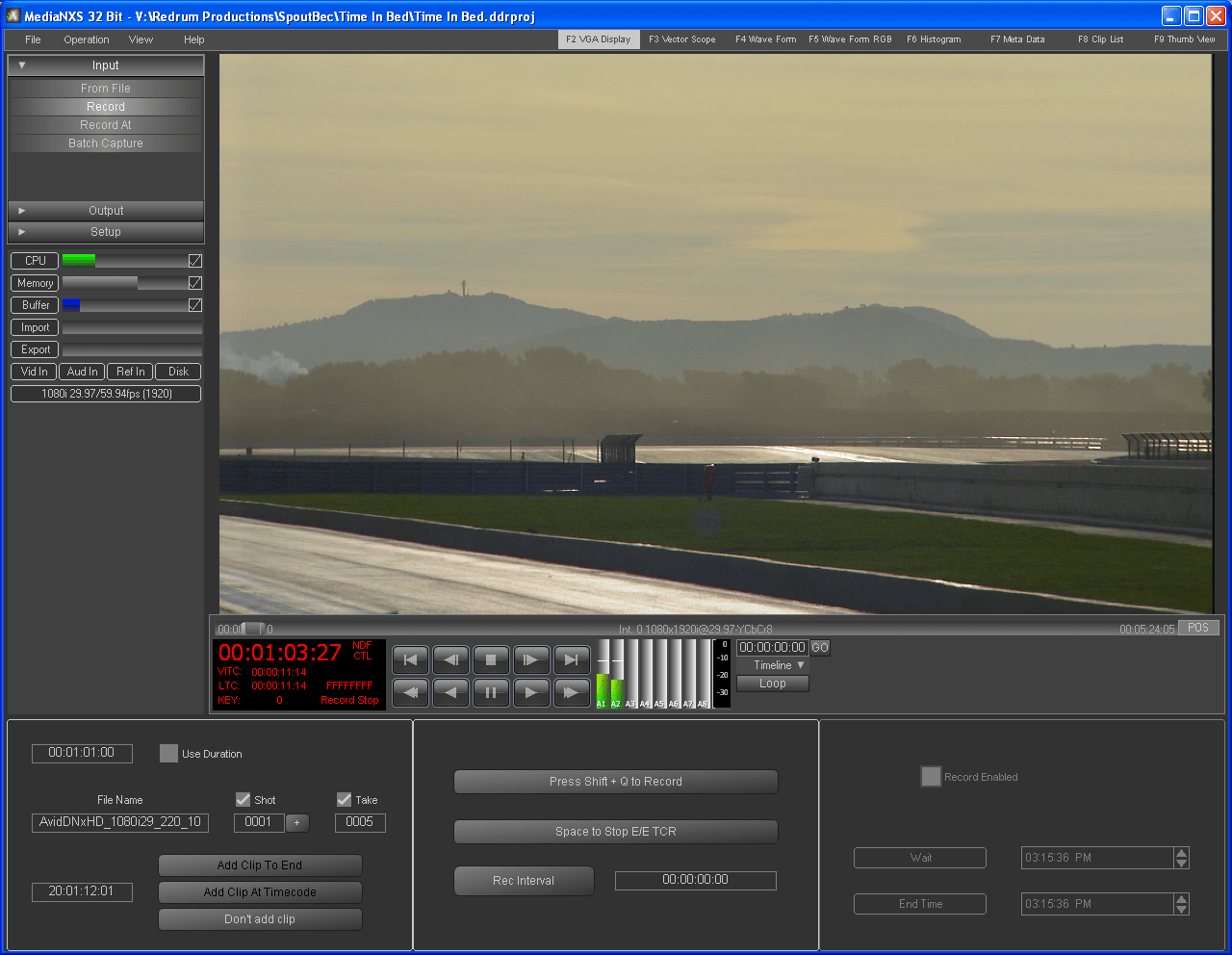

Record Setup

For on set use, self incrementing shot and take numbers can be embedded into each record file and its metadata. Records may be added to the timeline upon creation, either at a specific location or at the end of the last recorded clip. Records may be 'crash' records with user-directed record and stop controls, or using a set duration. Recordings may be set to occur at set intervals for specified durations, including single frame recording for animation. Time of Day recordings may also be set up, using the system clock to automatically start the recording (and if desired a duration setting to end the recording).

 All recordings are made in their selected, native format. Any storage that provides enough speed and capacity can be used.

File Import and Export via Embedded MediaReactor

MediaNXS includes selected components of Drastic's award winning MediaReactor file translation engine.  This allows a wide variety of files that cannot be worked in real time, to be imported or exported to file formats that can. The new file will always be to one of the industry standard formats MediaNXS supports for native playback.

z02 infile

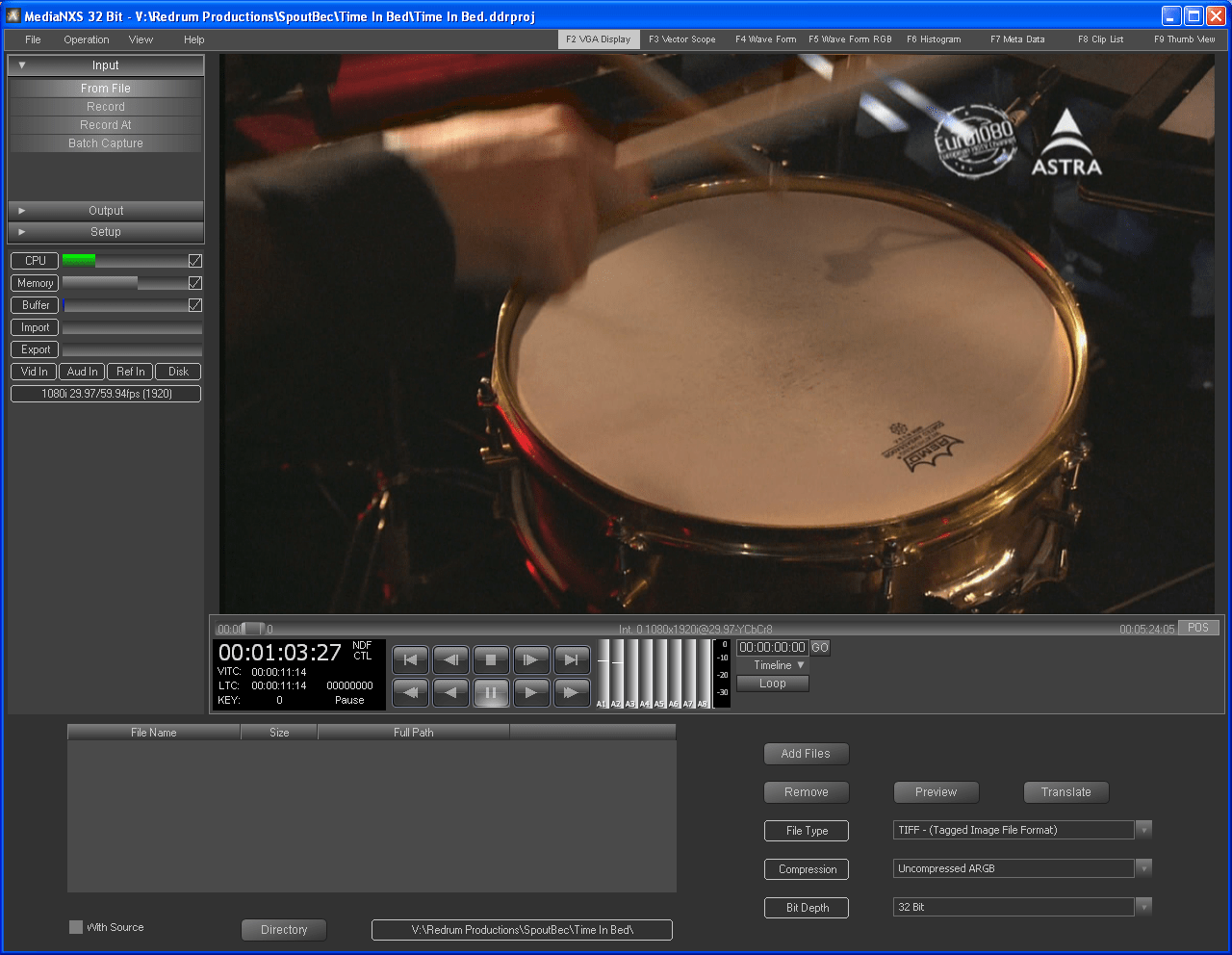

In From File

Import creates a series of new files in the specified format, ready for review, delivery or display. The new files are added to the Clip Bin so they will appear in the Thumbs and Clip views. A Preview feature is offered to confirm the user has selected the right media (and a remove function if the clip does not need to be transcoded).

z06 tofile

Out to File

Output to File uses the Timeline to select the media which will be transcoded. A dialog arises to let the user set the format for the conversion, and sets an In and Out point to include the media which needs to be transcoded. Once the transcode is finished the resulting file will have media where there are clips, and black with silence where there are none.

 A Load and Save As dialog are present in the format setup to provide templates for the user's transcodes, so the user only has to set up the transcode once to use the same parameters at will. The template is also available to other MediaNXS stations if it can be accessed on a network.

Clip Bin and Thumbnail View

Each MediaNXS project features a "Clip Bin" that contains a selected subset of the files on your system.  These files can be displayed as a clip list or a series of thumbnails, limiting the amount of information that needs to be dealt with at one time. Full sorting capabilities make it easy to find your clips, even in very large clip bins.

z17 thumbs

Thumbs view

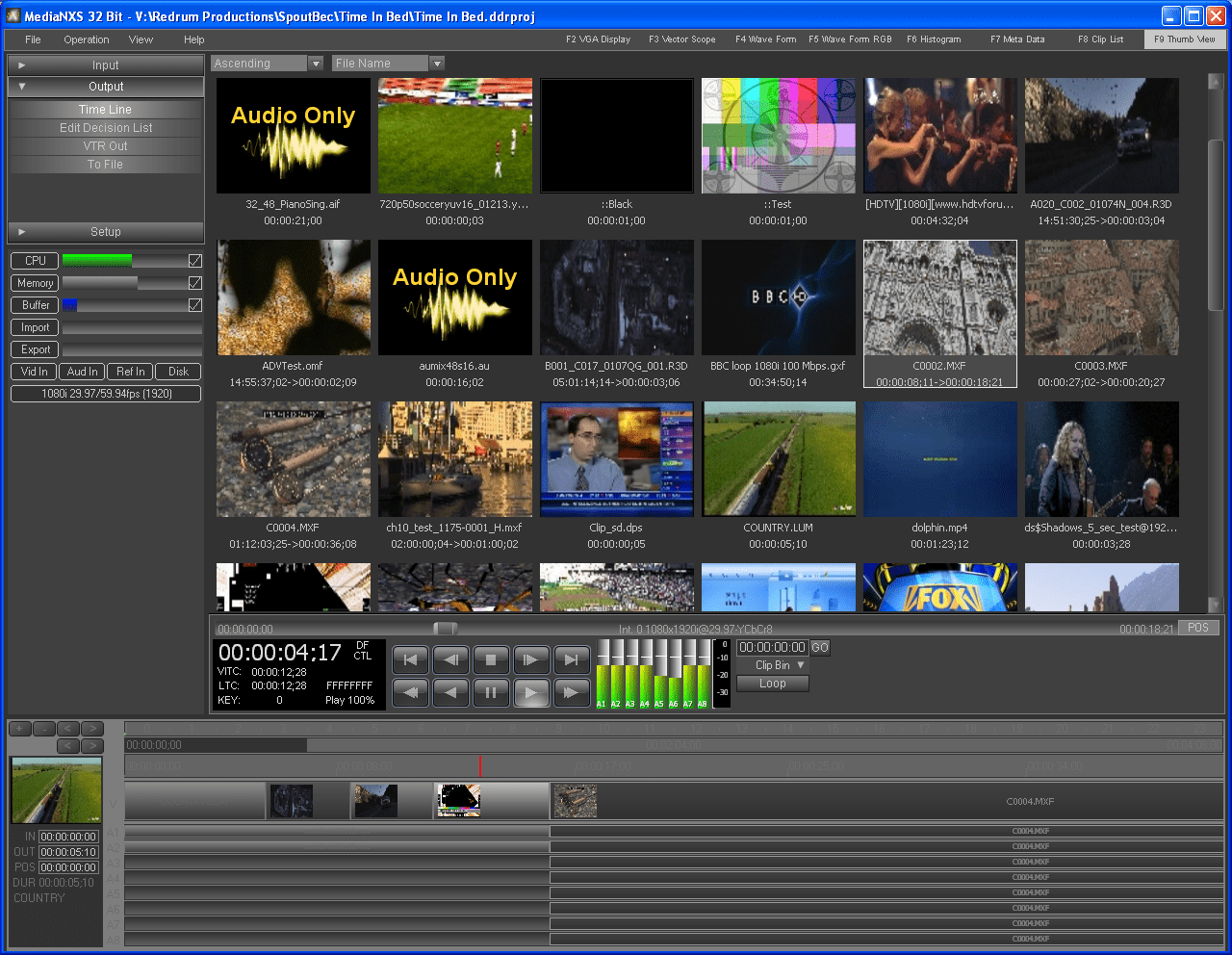

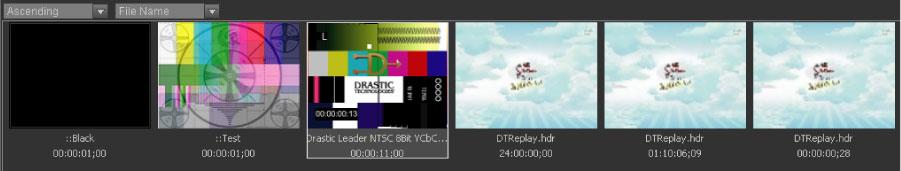

The Thumbs view provides a picon and identifying information about each clip, and offers dynamic features for the convenience of the user. Double clicking on the clip will load its details into an edit clip dialog. A right click option provides metadata display and edit options. You can add a clip to the Timeline or EDL by dragging and dropping.

z14 clip

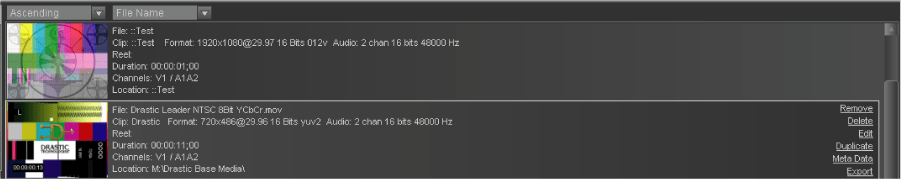

Clips view

The Clips View provides more extensive clip details, and offers a number of controls to work with the clip. The media can be removed (simply taken off the list but maintained), deleted (moved to the trash bin) or edited (have its in/out points trimmed). The clip may be duplicated to provide multiple instances for editing. The clip may be exported to various formats for delivery or alternate output.

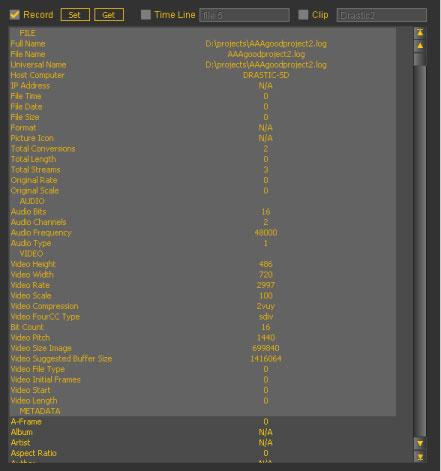

For all records, the metadata set is embedded into the media file where possible, and also stored in a sidebar XML file so that no information is lost. Metadata may be displayed for any loaded clip by selecting the Metadata View tab.

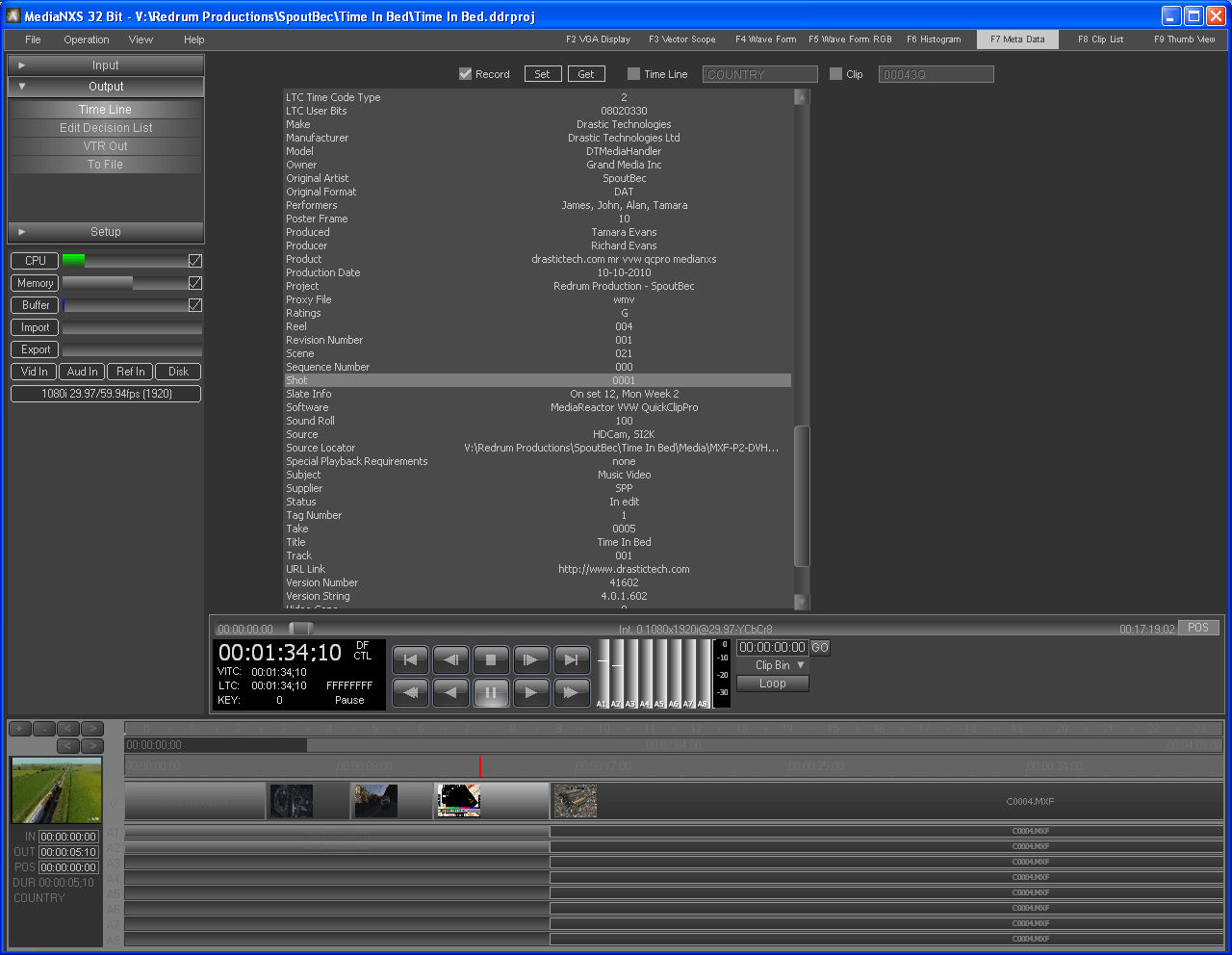

z16 meta

Metadata may also be accessed for a clip which has not been loaded. In Thumbs view, the user may right click on any clip's picon and select Metadata from the context menu. In Clips view the user may scroll to any clip and click on the word 'Metadata' to see the clip's metadata. Over a hundred metadata elements are maintained so any information that has been properly set will be accessible.

Timeline and EDL Editing

MediaNXS projects maintain a cuts-only conform that may be viewed as a timeline or a traditional EDL (edit decision list).   Clips may be added dynamically from the Thumbs view or Clip list. An Add dialog is available for clips not in the Clip list.

z04 timeline

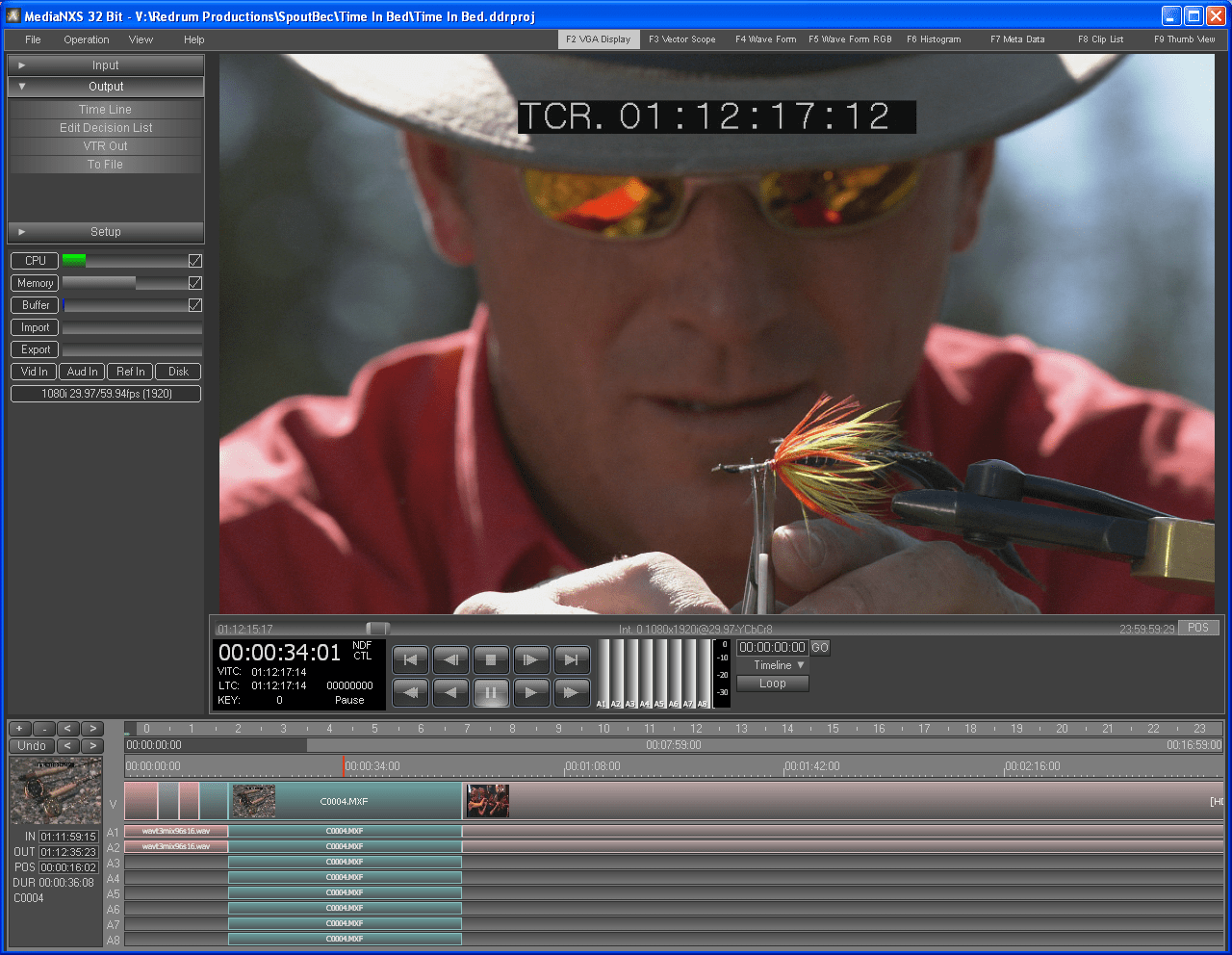

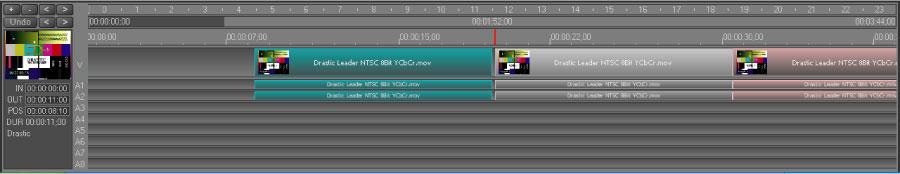

Timeline view

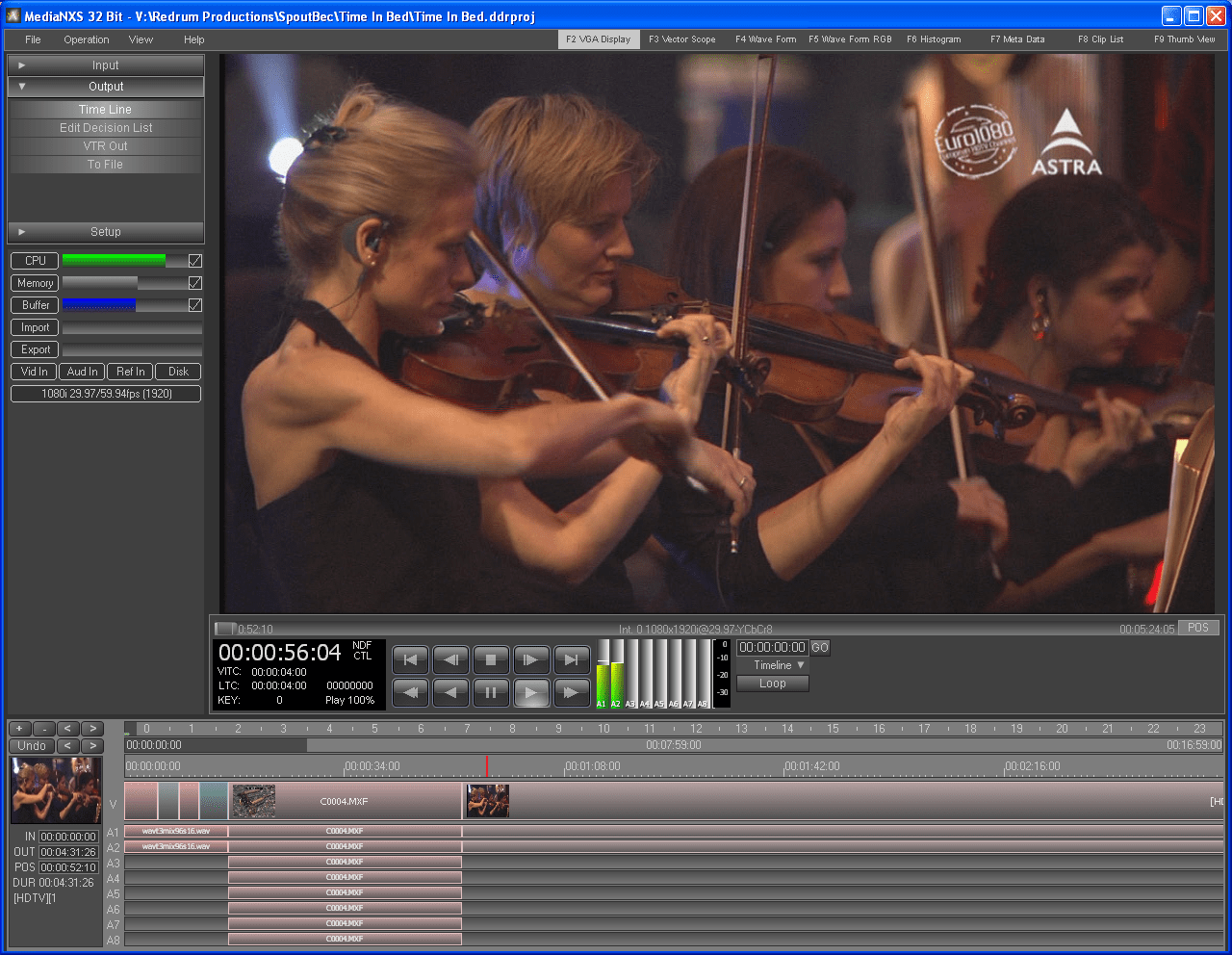

Clips are displayed on the timeline as a set of tracks, each of which display the track name. A picon is displayed for quick visual reference. Selecting the clip loads its details to the left of the timeline and allows the user to edit the In/Out points (trim the clip) and clip position on the timeline. An undo button is provided to remedy an incorrect action on the timeline. The timeline also provides the basis of the 'To VTR' direct to tape output as well as the file export. Timelines can be quickly generated by dragging and dropping clips onto the timeline, then moving them into place, and trimming as needed.  Fine tuning of the timeline can be done in the time code edit boxes to the right of the timeline, making frame accurate changes a snap.

z05 edl

EDL view

When in the EDL view, all time code positions are editable in place, for maximum convenience. Clips are displayed on the EDL as a row whose columns detail the parameters of the clip, such as the In/Out, Position, Path, Comment. Selecting a clip loads its details and allows the user to edit the In/Out points (trim the clip) and clip position in the EDL.

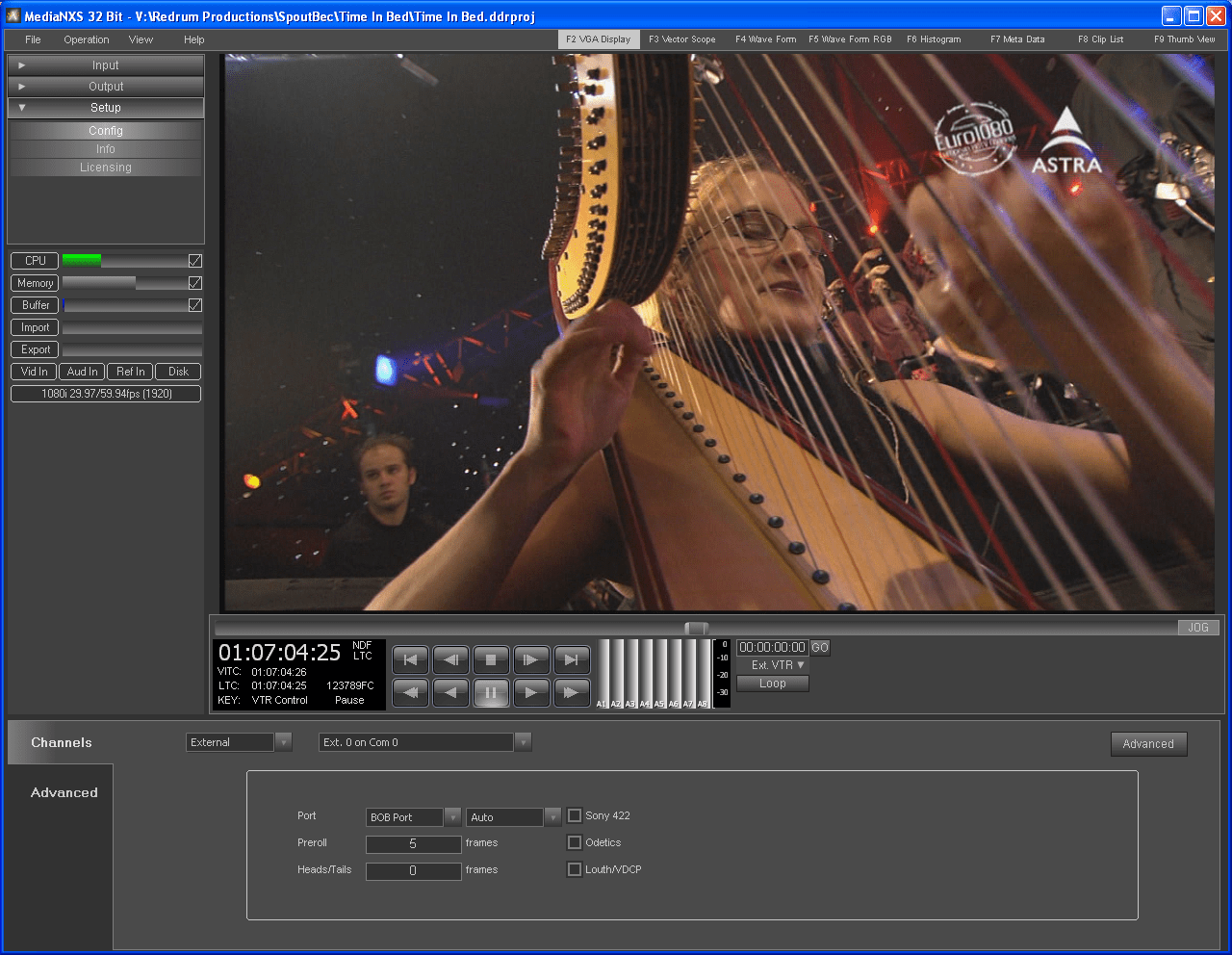

Batch Control External VTRs In and Out


Control an external VTR for frame accurate EDL based pull-ins and multiclip timeline based laybacks. Automatically create timelines through EDL batch capture. Exchange and edit timeline components for multiple distributables. Lay back the timeline in one pass and export a matching EDL.

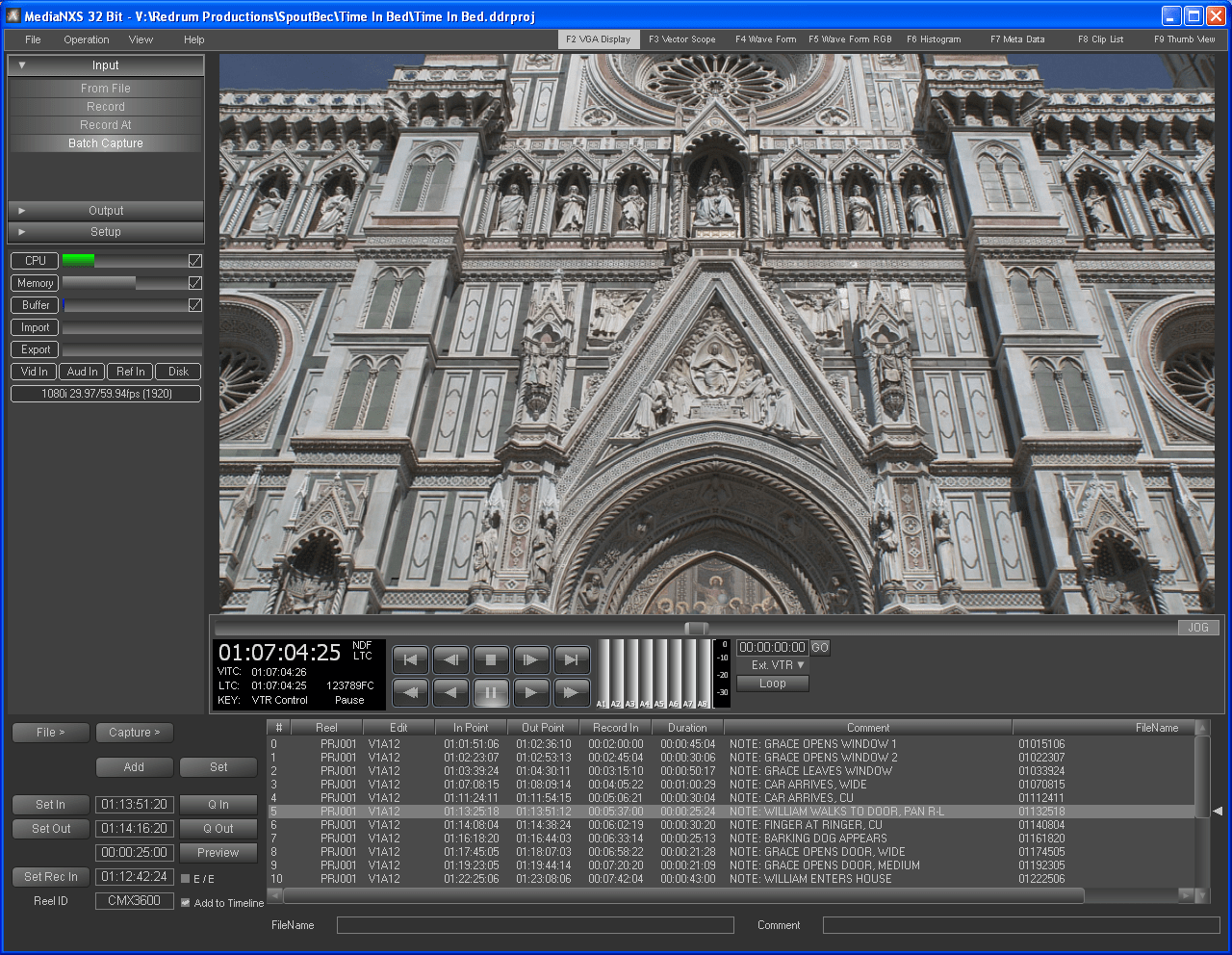

z01 vtr in

Preview individual edits or the whole EDL before running it. Adjusting edits is simple and non-destructive. Multiple lists may be saved whether they reference the same media or different media pools. MediaNXS supports a wide range of standard EDL types so lists may be saved in the user's preferred format for ease of access and compatibility.

z07 vtrout

There is a slave mode 9 pin serial control option available for MediaNXS, which allows standard controllers and automation systems to start and stop recording, bump edit, play out files and playlists, and review and create clips remotely. This option provides for seamless integration into an automated environment.


Signal Analysis and Measurement

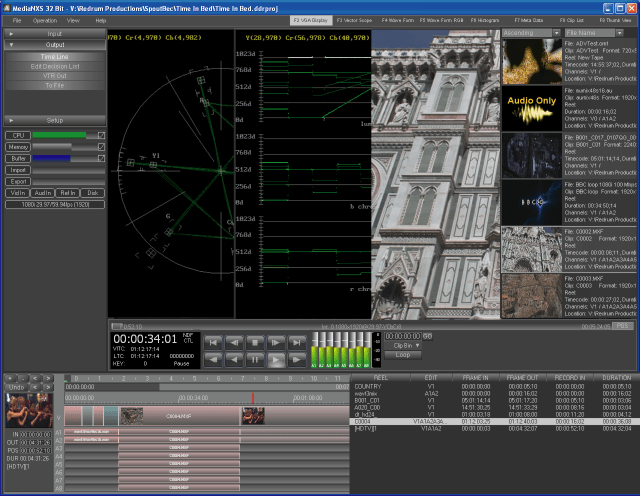

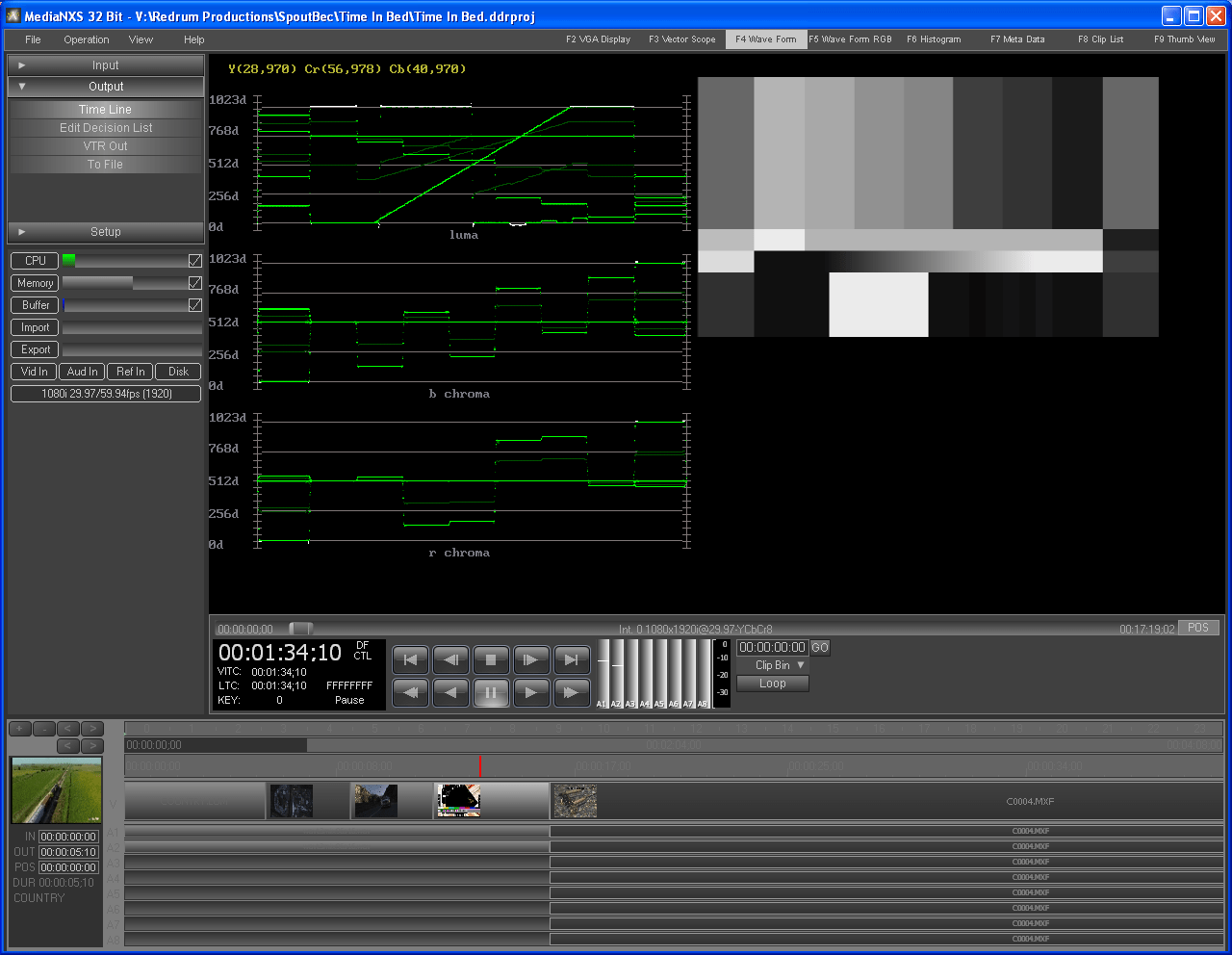

Built into MediaNXS are preview, vectorscope, waveform YCbCr, waveform RGB and histogram displays. Single link or dual link (hardware-dependent), RGB or YCbCr and file monitoring are supported. These signal analysis and measurement tools provide a general reference to confirm input and playback signal levels, color balance and other information.
